Titan TD-RT Series

Rough Terrain Diesel Forklifts (5,000–8,000 lbs)

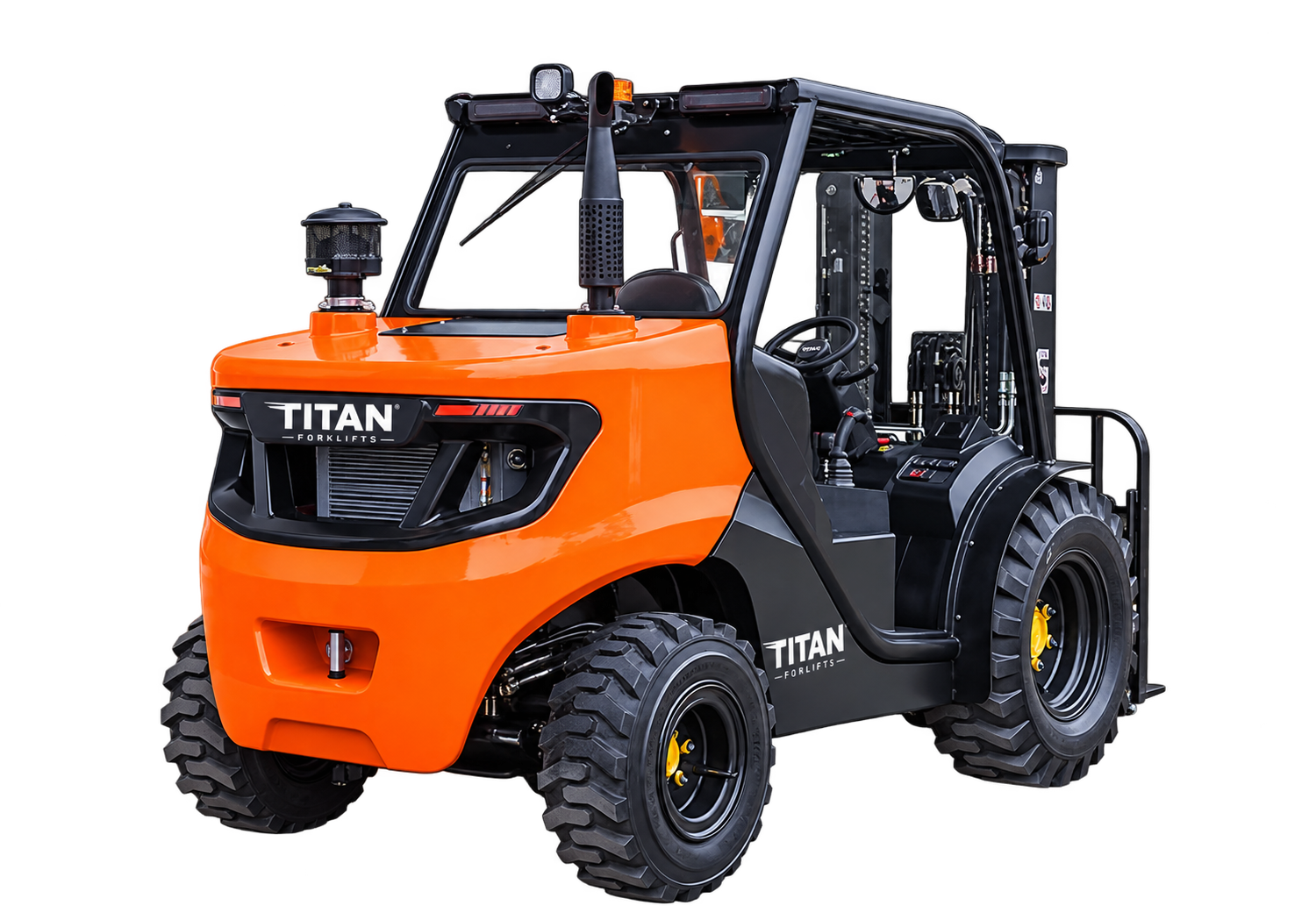

Titan RT4 Series — Traction for Demanding Terrain
TD25RT4 · TD30RT4 · TD35RT4s

The Titan RT4 Series combines four-wheel drive capability with lifting capacities from 2,500 to 3,500 kg for construction sites, farms, and lumber yards. Selectable drive modes, differential traction support, and deep-tread off-road tires help operators handle changing ground conditions. With Mitsubishi, Yanmar, and Hyundai diesel engine options, the RT4 delivers the power and versatility needed to keep materials moving across demanding outdoor work areas.

Selectable Four-Wheel Drive: Switch between 2WD and 4WD to suit the terrain, with limited-slip differentials in both axles helping maintain traction on loose or slippery surfaces.
Clearance for Uneven Ground: Off-road tires and 275 mm of clearance beneath the mast help the truck travel across uneven yards and outdoor work areas.
Power for Challenging Grades: Loaded gradeability of up to 50% on the TD25RT4 and 45% on the TD30RT4 and TD35RT4 provides climbing capability for demanding site conditions.

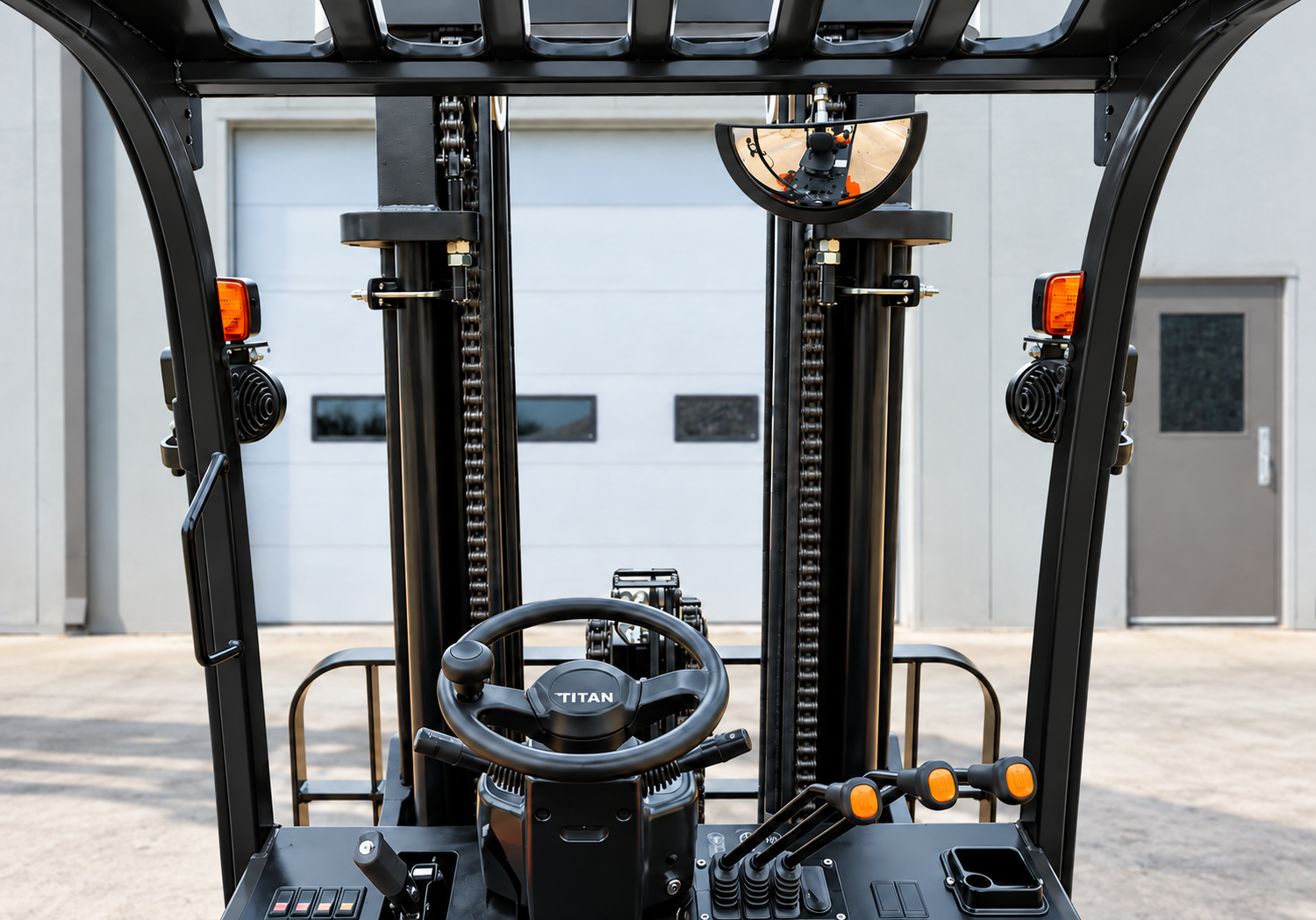

Comfort Through the Workday: An adjustable seat and steering wheel, wide-view mast, and suspension-mounted overhead guard help reduce vibration and support comfortable, controlled operation.

Specification	TD25RT4	TD30RT4	TD35RT4
Manufacturer	Titan	Titan	Titan
Model — Mitsubishi	TD25RT4M	TD30RT4M	TD35RT4M
Model — Yanmar	TD25RT4Y	TD30RT4Y	TD35RT4Y
Model — Hyundai	TD25RT4H	TD30RT4H	TD35RT4H
Drive configuration	4WD	4WD	4WD
Power type	Diesel	Diesel	Diesel
Rated load capacity	2,500 kg	3,000 kg	3,500 kg
Load centre	500 mm	500 mm	500 mm
Rated lift height	3,000 mm	3,000 mm	3,000 mm
Free lift height	160 mm	165 mm	165 mm
Fork dimensions — L × W × T	1,070 × 122 × 45 mm	1,070 × 125 × 50 mm	1,070 × 125 × 50 mm
Mast tilt — forward/backward	10° / 12°	10° / 12°	10° / 12°
Front overhang — wheel centre to fork face	585 mm	605 mm	605 mm
Rear overhang	615 mm	615 mm	615 mm
Ground clearance — bottom of mast	275 mm	275 mm	275 mm
Length to fork face — without forks	3,080 mm	3,100 mm	3,100 mm
Overall width	1,600 mm	1,600 mm	1,600 mm
Mast lowered height	2,215 mm	2,330 mm	2,330 mm
Mast extended height — with load backrest	4,122 mm	4,305 mm	4,305 mm
Overhead guard height	2,256 mm	2,276 mm	2,276 mm
Outside turning radius	3,150 mm	3,150 mm	3,150 mm
Minimum aisle width for pallets	4,735 mm	4,750 mm	4,750 mm
Travel speed — loaded/unloaded	17 / 18 km/h	17 / 18 km/h	17 / 18 km/h
Lift speed, Mitsubishi — loaded/unloaded	560 / 600 mm/s	520 / 560 mm/s	470 / 500 mm/s
Lift speed, Yanmar — loaded/unloaded	600 / 650 mm/s	530 / 560 mm/s	480 / 510 mm/s
Lift speed, Hyundai — loaded/unloaded	600 / 650 mm/s	530 / 560 mm/s	480 / 510 mm/s
Lowering speed — loaded	≤600 mm/s	≤600 mm/s	≤600 mm/s
Lowering speed — unloaded	≥300 mm/s	≥300 mm/s	≥300 mm/s
Maximum drawbar pull — loaded	38 kN	38 kN	38 kN
Maximum gradeability — loaded	50%	45%	45%
Front tires — 2	12-16.5-12PR	14-17.5-14PR	14-17.5-14PR
Rear tires — 2	10.0/75-15.3	10.0/75-15.3	10.0/75-15.3
Front track width	1,250 mm	1,250 mm	1,250 mm
Rear track width	1,190 mm	1,190 mm	1,190 mm
Wheelbase	1,880 mm	1,880 mm	1,880 mm
Service weight	4,820 kg	5,300 kg	5,450 kg
Front axle weight — loaded	6,592 kg	7,265 kg	7,764 kg
Rear axle weight — loaded	728 kg	1,035 kg	1,186 kg
Front axle weight — unloaded	2,165 kg	2,390 kg	2,430 kg
Rear axle weight — unloaded	2,655 kg	2,910 kg	3,020 kg
Battery	12 V / 90 Ah	12 V / 90 Ah	12 V / 90 Ah
Fuel tank capacity	55 L	55 L	55 L
Transmission type	Hydraulic	Hydraulic	Hydraulic
Transmission speeds — forward/reverse	2 / 1	2 / 1	2 / 1
Attachment operating pressure	20 MPa	20 MPa	20 MPa

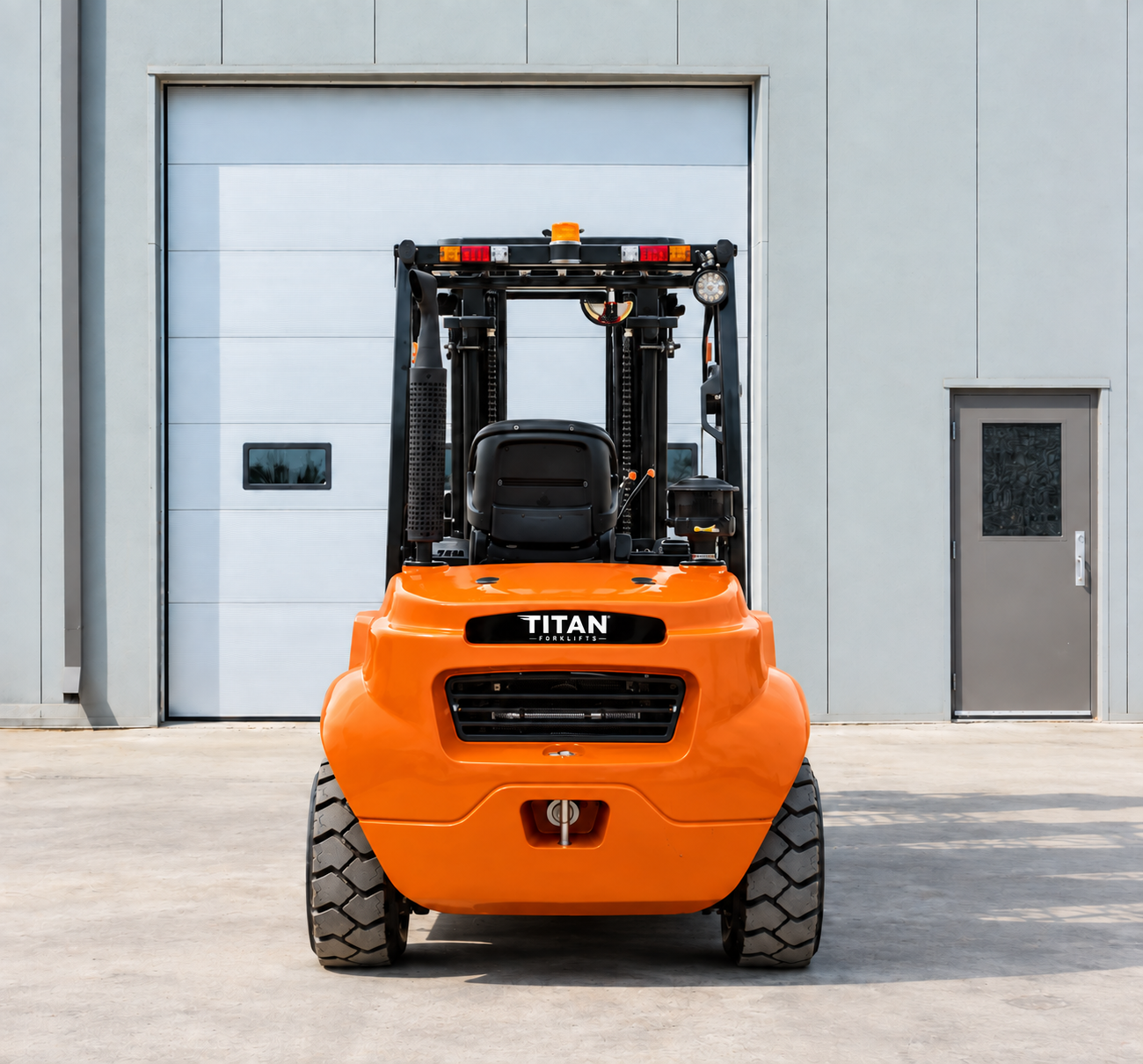

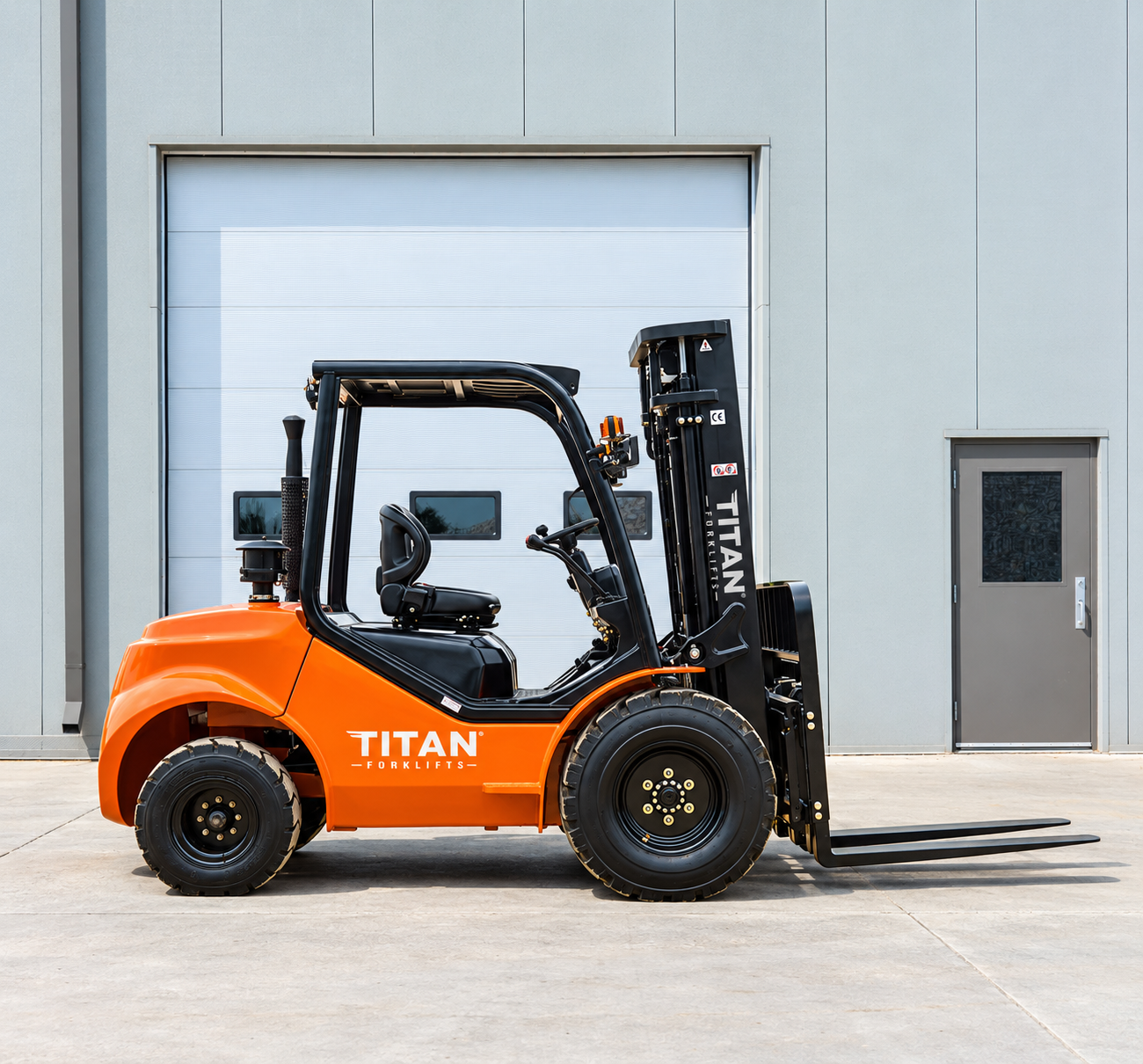

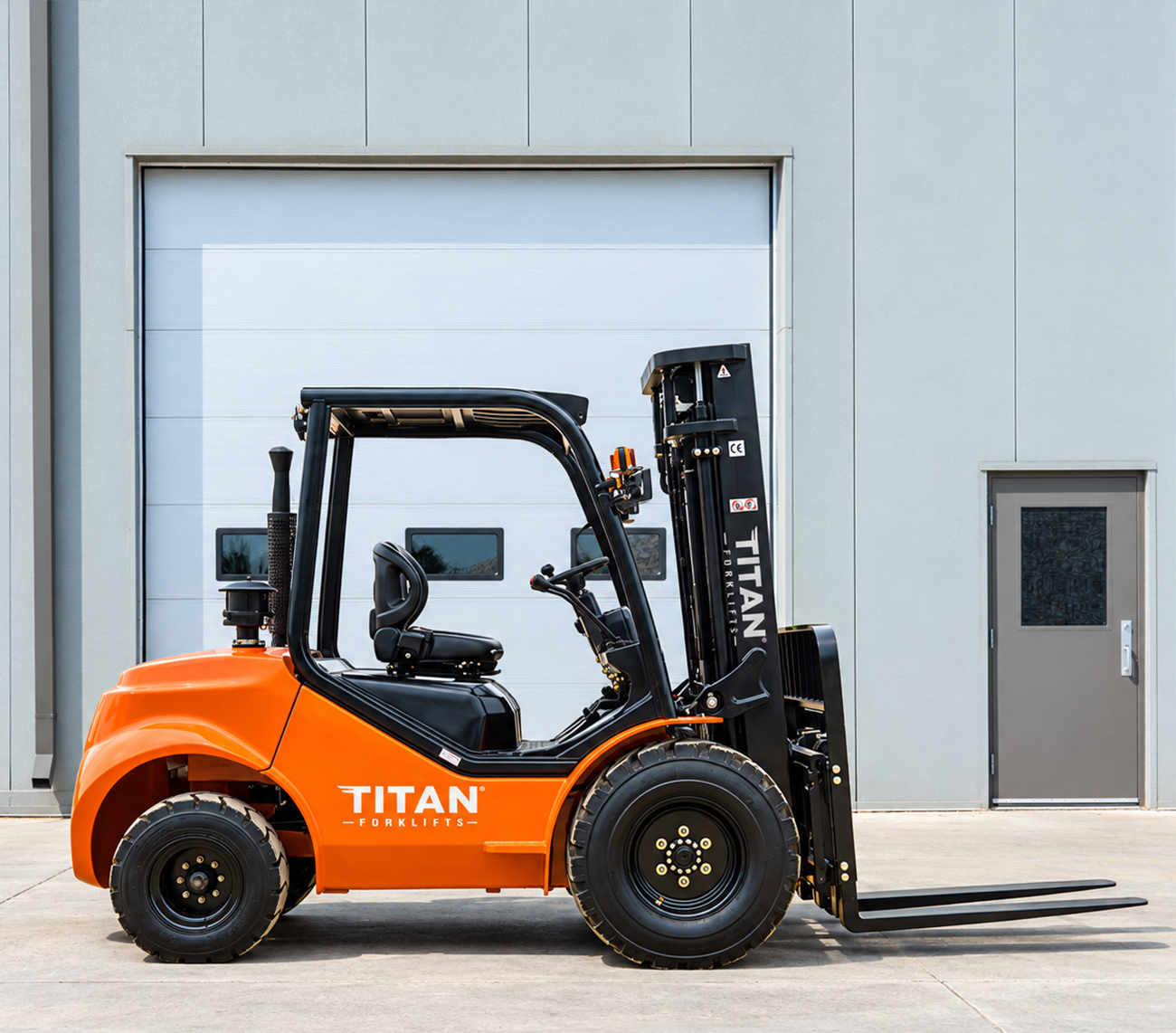

Titan RT2 Series — Outdoor Capability with Everyday Maneuverability
TD25RT2 · TD30RT2 · TD35RT2

The Titan RT2 Series delivers practical outdoor material handling with lifting capacities from 2,500 to 3,500 kg. Its two-wheel drive configuration combines a locking differential and off-road tires with a compact chassis that is easy to position around buildings, stored materials, and yard equipment. Available with Mitsubishi, Yanmar, and Hyundai diesel engines, the RT2 brings dependable lifting performance to agricultural operations, building supply yards, and other outdoor workplaces.

Locking Differential for Added Traction: A 100% locking drive differential helps maintain forward movement when one drive wheel encounters loose or slippery ground.
Tighter Turning in Busy Yards: A 2,900 mm outside turning radius and 1,600 mm overall width help operators maneuver around obstacles and position loads in confined work areas.
Built to Handle Uneven Surfaces: Large off-road front tires and 275 mm of clearance beneath the mast support travel across the uneven surfaces commonly found in farms and material yards.

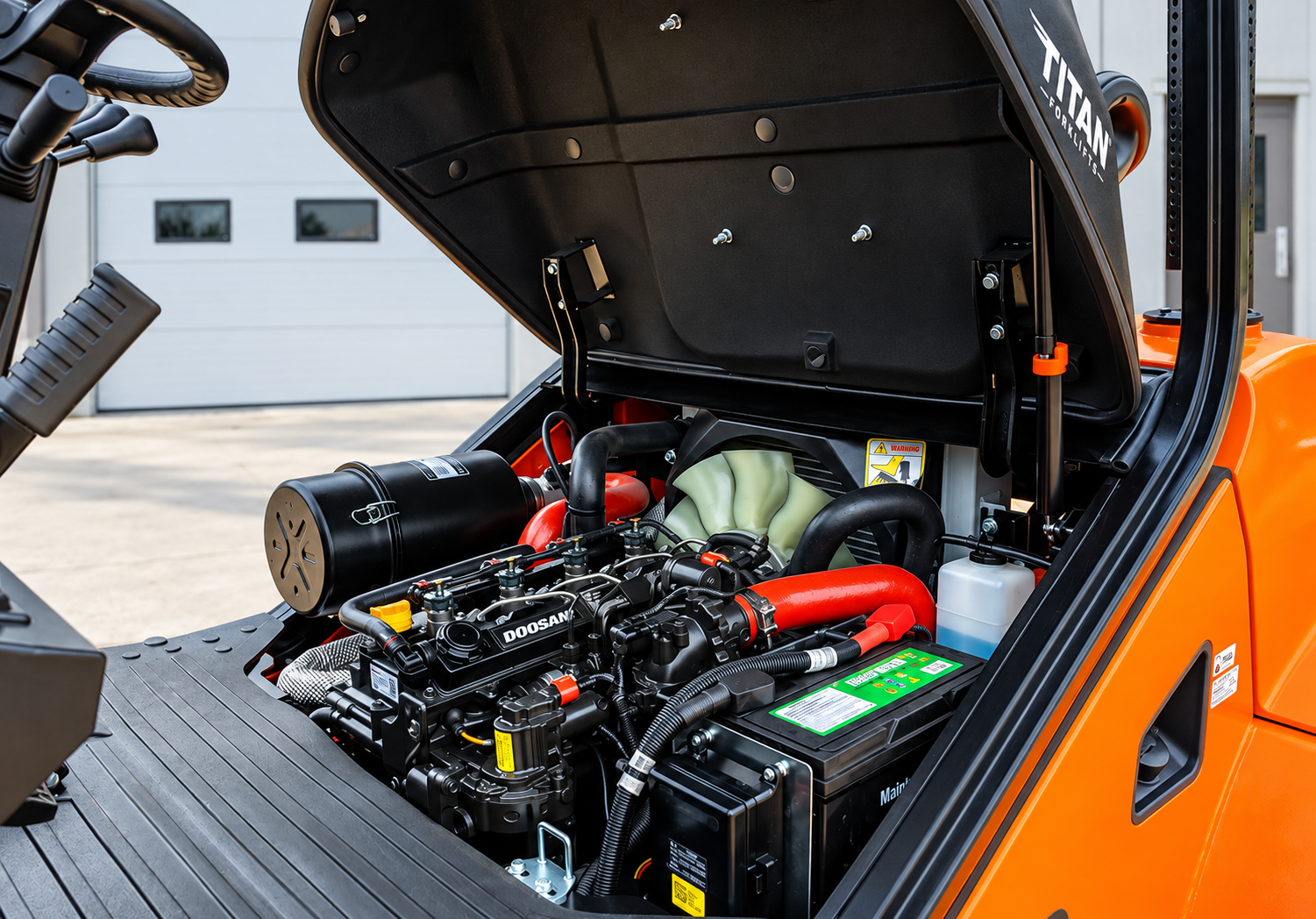

Easy Access for Routine Service: A wide-opening engine hood makes daily inspections and maintenance components easier to reach, helping simplify upkeep and keep the truck ready for work.

Specification	TD25RT2	TD30RT2	TD35RT2
Manufacturer	Titan	Titan	Titan
Model — Mitsubishi	TD25RT2M	TD30RT2M	TD35RT2M
Model — Yanmar	TD25RT2Y	TD30RT2Y	TD35RT2Y
Model — Hyundai	TD25RT2H	TD30RT2H	TD35RT2H
Drive configuration	2WD	2WD	2WD
Power type	Diesel	Diesel	Diesel
Rated load capacity	2,500 kg	3,000 kg	3,500 kg
Load centre	500 mm	500 mm	500 mm
Rated lift height	3,000 mm	3,000 mm	3,000 mm
Free lift height	160 mm	165 mm	165 mm
Fork dimensions — L × W × T	1,070 × 122 × 45 mm	1,070 × 125 × 50 mm	1,070 × 125 × 50 mm
Mast tilt — forward/backward	10° / 12°	10° / 12°	10° / 12°
Front overhang — wheel centre to fork face	585 mm	605 mm	605 mm
Rear overhang	520 mm	520 mm	520 mm
Ground clearance — bottom of mast	275 mm	275 mm	275 mm
Length to fork face — without forks	2,985 mm	3,005 mm	3,005 mm
Overall width	1,600 mm	1,600 mm	1,600 mm
Mast lowered height	2,215 mm	2,330 mm	2,330 mm
Mast extended height — with load backrest	4,122 mm	4,305 mm	4,305 mm
Overhead guard height	2,256 mm	2,276 mm	2,276 mm
Outside turning radius	2,900 mm	2,900 mm	2,900 mm
Minimum aisle width for pallets	4,730 mm	4,730 mm	4,730 mm
Travel speed — loaded/unloaded	17 / 18 km/h	17 / 18 km/h	17 / 18 km/h
Lift speed — loaded/unloaded	560 / 600 mm/s	450 / 540 mm/s	450 / 540 mm/s
Lowering speed — loaded	≤600 mm/s	≤600 mm/s	≤600 mm/s
Lowering speed — unloaded	≥300 mm/s	≥300 mm/s	≥300 mm/s
Maximum drawbar pull — loaded/unloaded	21 / 17 kN	21 / 17 kN	21 / 17 kN
Maximum gradeability — loaded	20%	20%	20%
Front tires — 2	12-16.5-12PR	14-17.5-14PR	14-17.5-14PR
Rear tires — 2, tube type	27×10-12-12PR	27×10-12-12PR	27×10-12-12PR
Rear tires — 2, tubeless option	27×10.5-15	27×10.5-15	27×10.5-15
Front track width	1,250 mm	1,250 mm	1,250 mm
Rear track width	1,205 mm	1,205 mm	1,205 mm
Wheelbase	1,880 mm	1,880 mm	1,880 mm
Service weight	4,215 kg	4,845 kg	5,135 kg
Front axle weight — loaded	5,780 kg	6,880 kg	7,680 kg
Rear axle weight — loaded	935 kg	965 kg	955 kg
Front axle weight — unloaded	1,820 kg	1,990 kg	2,110 kg
Rear axle weight — unloaded	2,395 kg	2,855 kg	3,025 kg
Battery	12 V / 90 Ah	12 V / 90 Ah	12 V / 90 Ah
Fuel tank capacity	55 L	55 L	55 L
Transmission type	Hydraulic	Hydraulic	Hydraulic
Transmission speeds — forward/reverse	1 / 1	1 / 1	1 / 1
Attachment operating pressure	20 MPa	20 MPa	20 MPa

Titan RT Compact — Compact Size. Serious Rough Terrain Capability.

The Titan RT Compact combines a 2,500 kg lifting capacity with selectable 2WD and 4WD, giving operators the versatility to handle demanding outdoor work in areas where space is limited. Its narrow 1,450 mm body and low-profile overhead guard provide a compact footprint, while generous ground clearance and wide off-road tyres help it negotiate uneven working surfaces. A hydrostatic drivetrain delivers smooth, stepless travel control for precise positioning, with a choice of Yanmar or Hyundai diesel power. From construction sites and agricultural operations to busy material yards, the Titan RT Compact brings together capable load handling, responsive control, and operator comfort in one versatile truck.

Compact Dimensions for Restricted Work Areas: A 1,450 mm overall width and 1,990 mm overhead guard height help the Titan RT Compact work where space and overhead clearance are important. Its compact body makes it easier to position around materials and site obstacles, while a choice of mast configurations lets you match lifting height and lowered mast height to your application.
Selectable Traction for Changing Ground Conditions: Switch between 2WD and 4WD at the touch of a button to suit the working surface. Wide off-road tyres, 300 mm of clearance beneath the mast, and 310 mm beneath the centre of the wheelbase help the truck negotiate uneven ground. With published maximum gradeability of up to 50%, the Titan RT Compact is built for demanding outdoor environments.
Smooth Hydrostatic Control with Proven Diesel Power: A Danfoss pump combined with Poclain hydraulic components provides stepless speed regulation, helping operators approach loads and position the truck smoothly. Automatic braking when the travel pedal is released supports controlled operation during frequent starts and stops, while load-sensing steering assists manoeuvring. Choose between Yanmar 4TNE98 and Hyundai D24 diesel engines to suit your equipment requirements.
Operator Comfort and Clear Visibility: A fully suspended operator cabin helps reduce vibration and shocks, while generous legroom supports comfort throughout the working day. The wide-view mast, wide-angle rearview mirror, rear camera display, and front and rear LED work lights help operators monitor the load and surrounding work area. Available upgrades include a suspension seat with an operator presence system, a fully enclosed cabin, and roof-mounted air conditioning.

General Specifications

Specification	Titan RT Compact
Manufacturer	Titan
Fuel type	Diesel
Rated capacity	2,500 kg
Load centre	500 mm
Drive modes	Selectable 2WD / 4WD
Transmission	Hydrostatic
Standard lift height	3,300 mm
Free lift	112 mm
Mast lowered height	2,360 mm
Mast extended height, with load backrest	4,364 mm
Mast tilt, forward / backward	10° / 12°
Overhead guard height	1,990 mm
Overall length, including forks	4,135 mm
Length to fork face, excluding forks	3,065 mm
Overall width	1,450 mm
Fork dimensions, L × W × T	1,070 × 122 × 40 mm
Fork overhang, wheel centre to fork face	613 mm
Fork carriage width	1,200 mm
Ground clearance below mast	300 mm
Ground clearance at centre of wheelbase	310 mm
Turning radius	3,380 mm
Wheelbase	1,900 mm
Front / rear track width	1,160 / 1,175 mm
Front tyres	12.5/80-18 NHS, 14PR
Rear tyres	27 × 10-12 NHS
Truck weight, standard configuration	4,230 kg
Fuel tank capacity	50 L
Operating pressure	18.5 MPa
Transmission stages, forward / reverse	1 / 1

Performance

Specification	Fully loaded	Unloaded
Travel speed, 2WD	19 km/h	21 km/h
Travel speed, 4WD	10 km/h	12 km/h
Lifting speed	0.40 m/s	0.50 m/s
Lowering speed	0.60 m/s	0.30 m/s
Maximum drawbar pull	38 kN	30 kN
Maximum gradeability	50%	50%
Front / rear axle weight distribution	5,660 / 1,070 kg	1,690 / 2,540 kg

Engine Options

Specification	Yanmar	Hyundai
Engine model	4TNE98	D24
Rated power	43.7 kW	48.2 kW
Rated engine speed	2,300 rpm	2,600 rpm
Rated torque	177.6–196.3 Nm at 1,700 rpm	214 Nm at 1,600 rpm
Displacement	3,318 cc	2,392 cc
Bore × stroke	98 × 110 mm	90 × 94 mm
