Titan TG-Series LPG/Gas Forklifts

4,000–11,000 lb Capacity

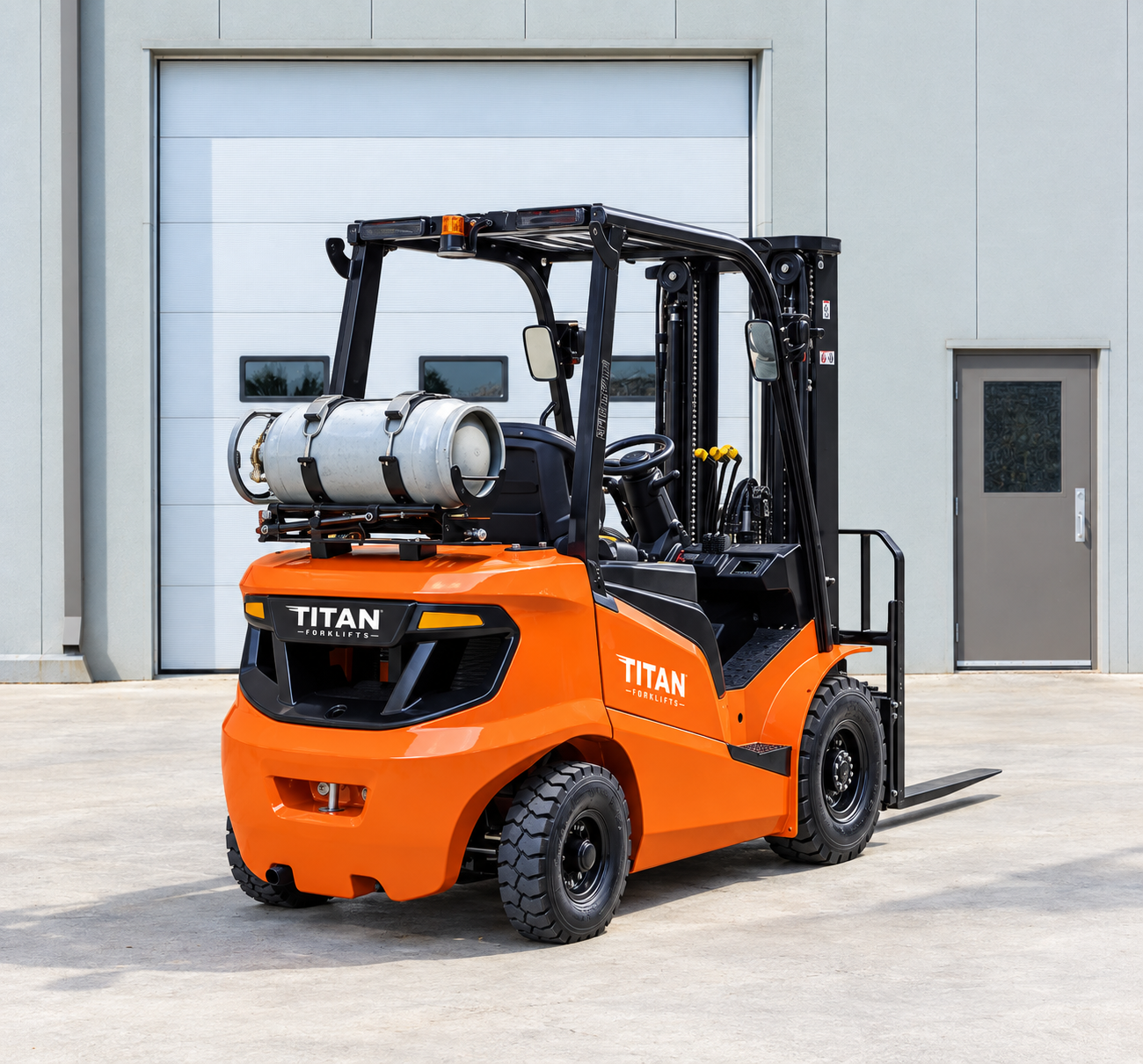

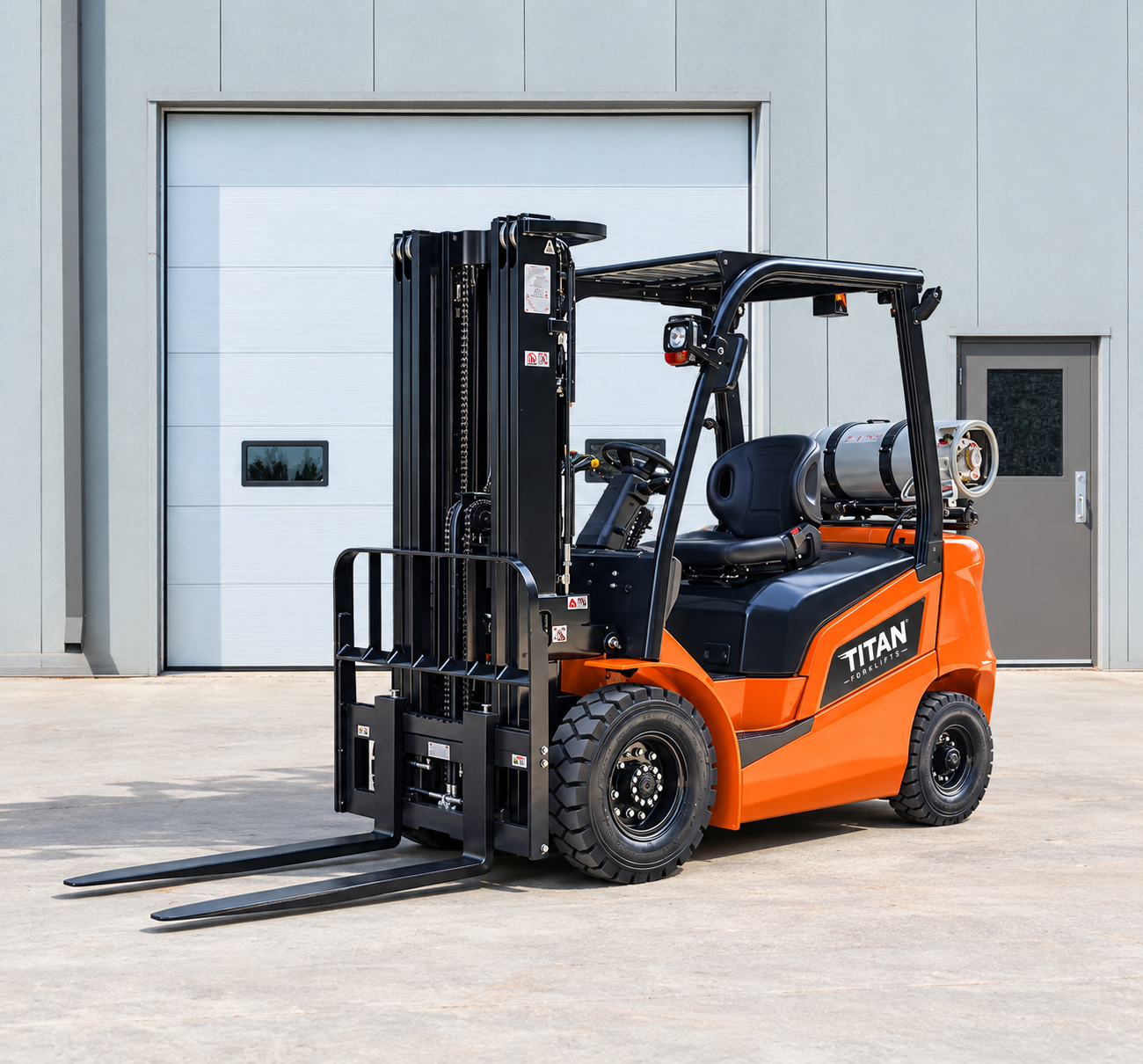

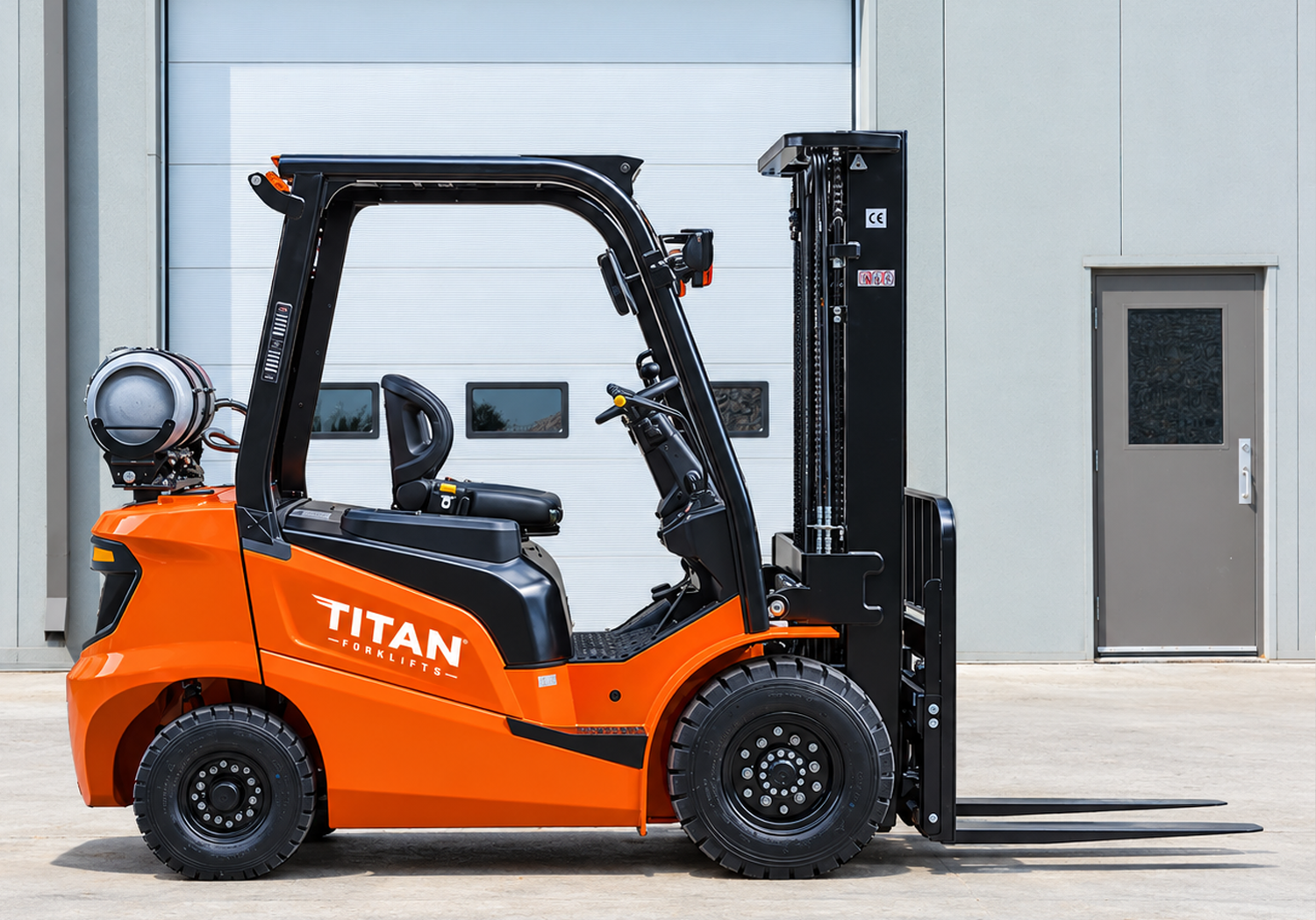

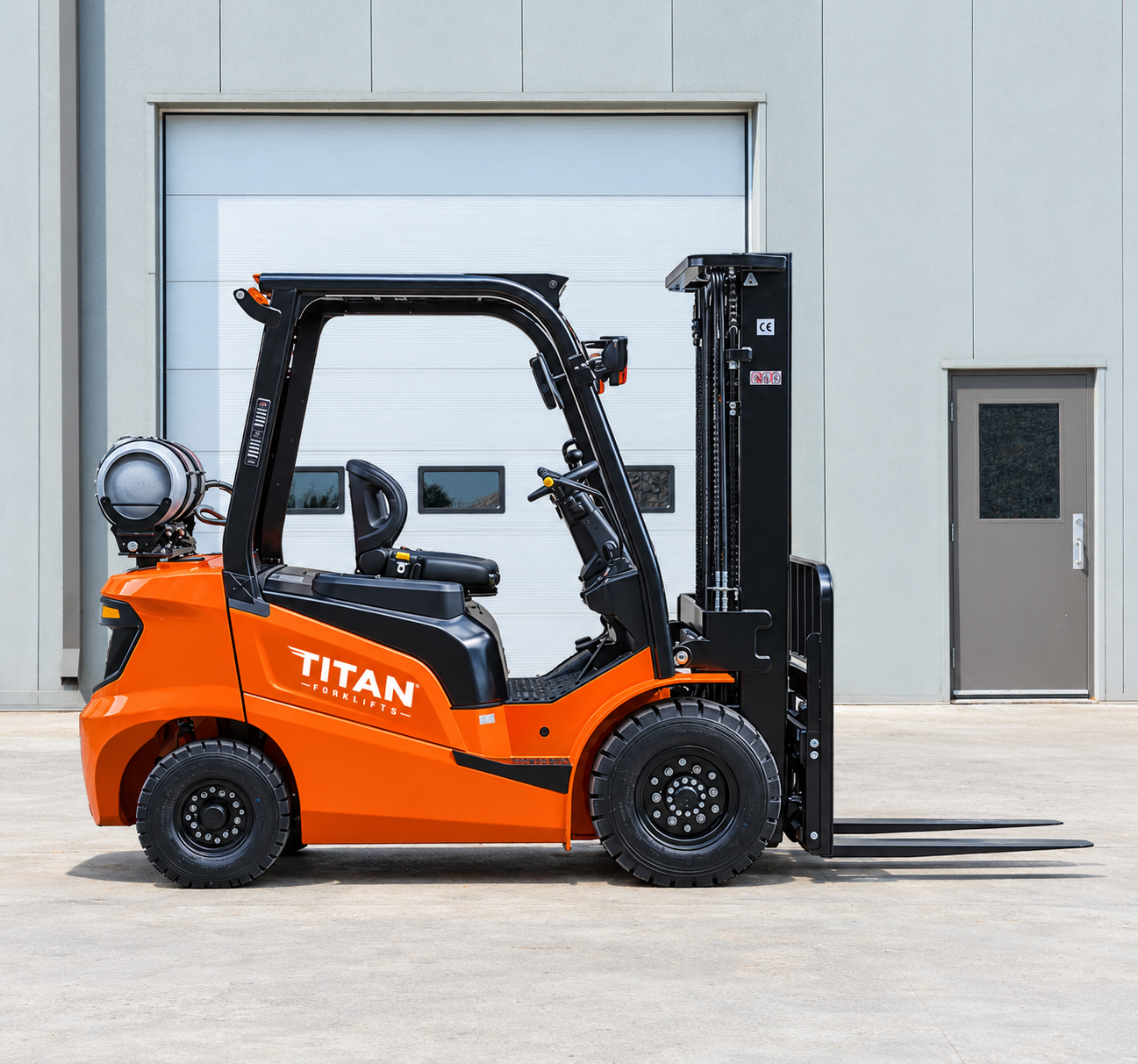

Titan TG-Series
2–3.5 Ton LPG/Gas Forklifts

The Titan TG Series combines dependable power with fuel flexibility for demanding material handling operations. An IMPCO fuel management system supports consistent fuel delivery and smooth engine performance, while available dual-fuel configurations allow operators to switch between gasoline and LPG to suit their operation. With GCT and Hyundai engine options across the range and lifting capacities from 2.0 to 3.5 tonnes, the TG Series offers a practical combination of strength, control, and operator comfort.

IMPCO Fuel Management: Precise fuel delivery supports reliable starting, smooth operation, and consistent power under load.
Dual-Fuel Flexibility: Available gasoline/LPG configurations give operators the flexibility to select the fuel that suits their workflow and refuelling arrangements.

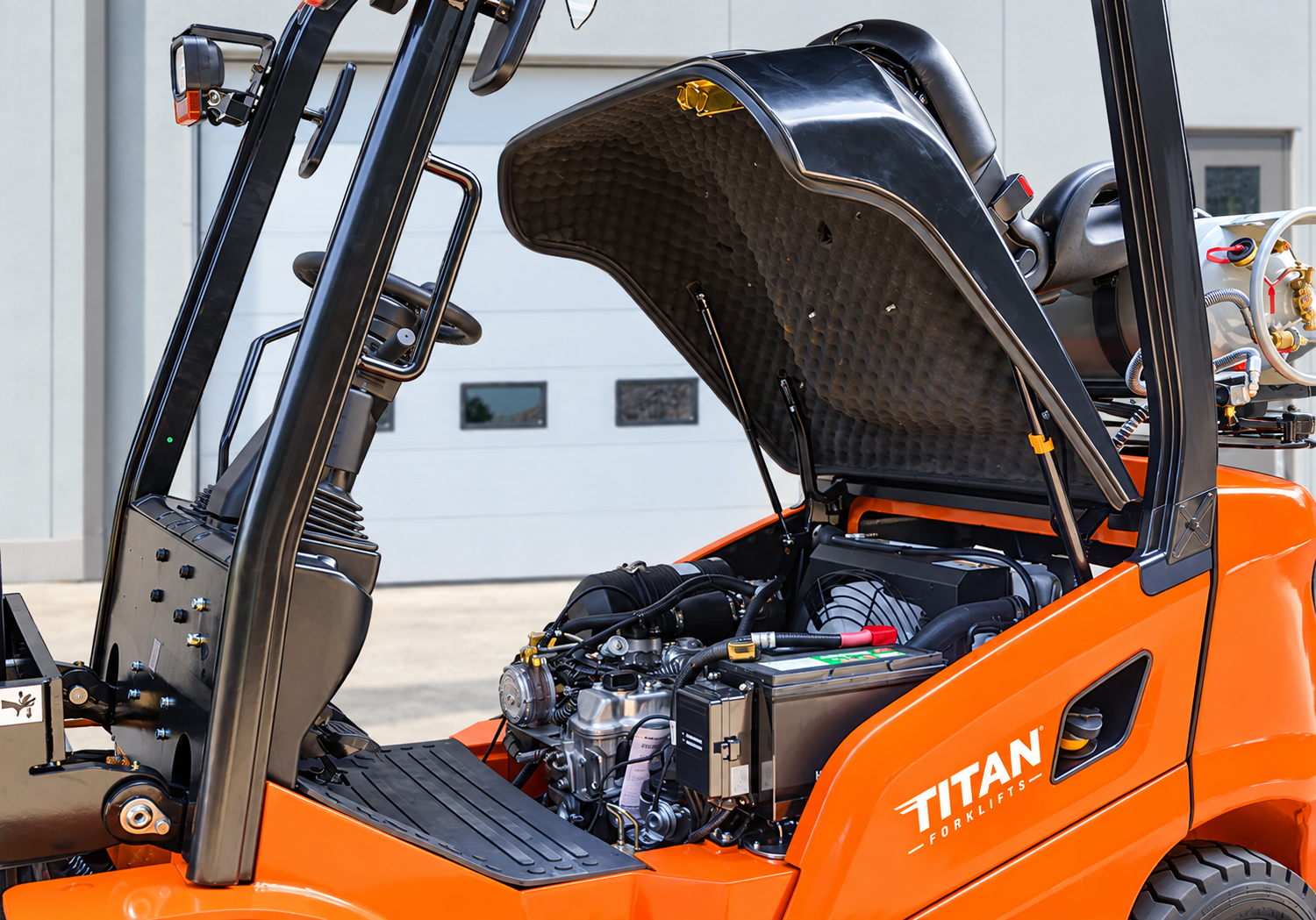

Choice of Engine Options: GCT and Hyundai engines are available across the range, with options depending on the selected fuel configuration.

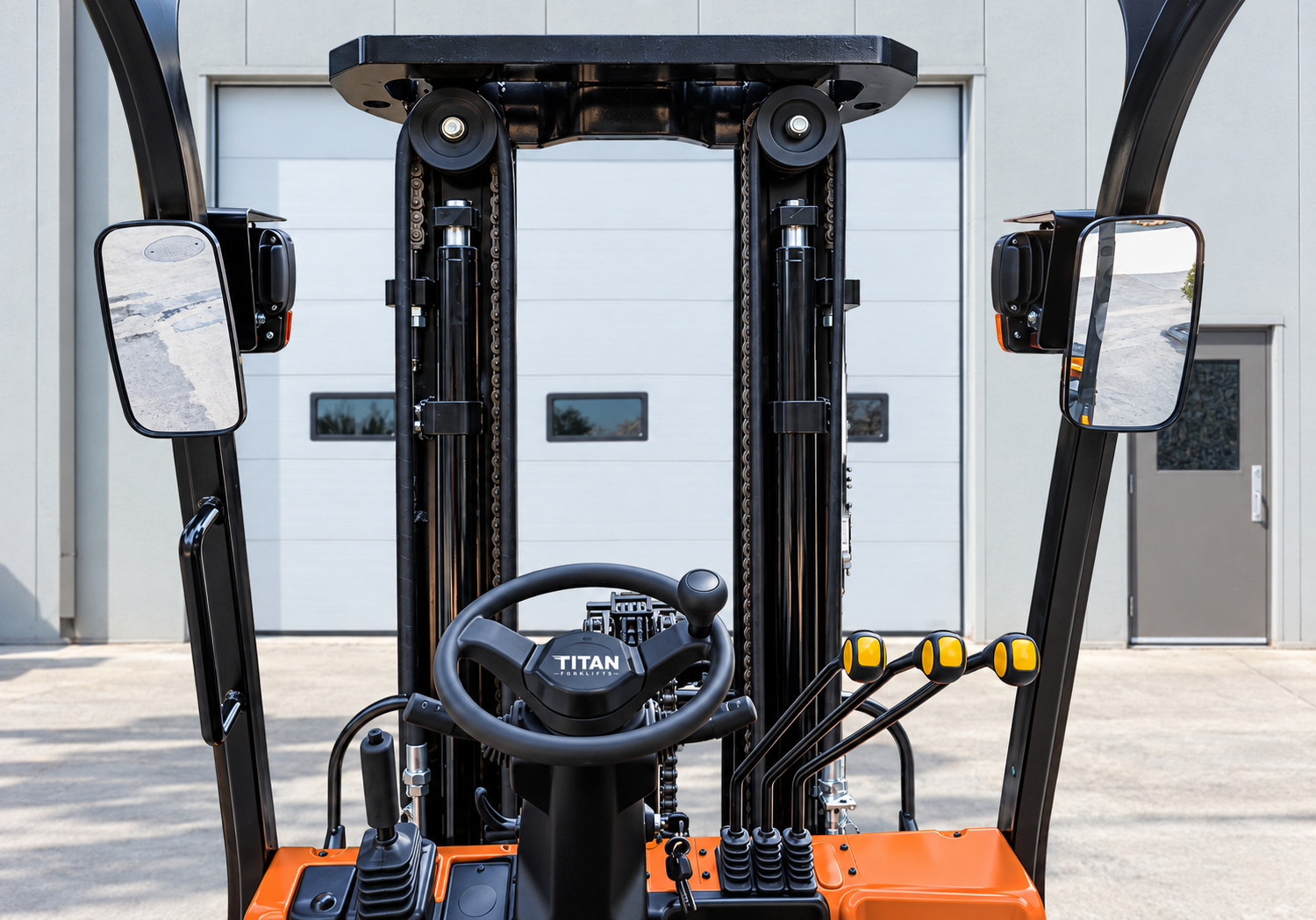

Comfort and Confident Control: Load-sensing steering, an adjustable steering column, and a wide-view mast help reduce operator effort and improve visibility when positioning loads

General
Specification	TG20	TG25	TG30	TG35
Manufacturer	Titan	Titan	Titan	Titan
Rated Load Capacity	2,000 kg / 4,409 lb	2,500 kg / 5,512 lb	3,000 kg / 6,614 lb	3,500 kg / 7,716 lb
Load Centre	500 mm	500 mm	500 mm	500 mm
Rated Lift Height	3,000 mm	3,000 mm	3,000 mm	3,000 mm
Free Lift Height	120 mm	120 mm	125 mm	130 mm

Dimensions
Specification	TG20	TG25	TG30	TG35
Fork Dimensions — L × W × T	1,070 × 100 × 40 mm	1,070 × 122 × 40 mm	1,070 × 122 × 45 mm	1,070 × 122 × 50 mm
Mast Tilt — Forward / Backward	6° / 12°	6° / 12°	6° / 12°	6° / 12°
Front Overhang — Wheel Centre to Fork Face	462 mm	462 mm	467 mm	472 mm
Rear Overhang	550 mm	550 mm	530 mm	600 mm
Ground Clearance — Bottom of Mast	110 mm	110 mm	125 mm	125 mm
Length to Fork Face — Without Forks	2,662 mm	2,662 mm	2,697 mm	2,772 mm
Overall Width	1,180 mm	1,180 mm	1,220 mm	1,220 mm
Mast Lowered Height	2,100 mm	2,100 mm	2,115 mm	2,115 mm
Mast Extended Height — With Backrest	4,198 mm	4,198 mm	4,213 mm	4,213 mm
Overhead Guard Height	2,215 mm	2,215 mm	2,235 mm	2,235 mm
Outside Turning Radius	2,365 mm	2,365 mm	2,425 mm	2,500 mm
Minimum Aisle Width for Pallets	4,120 mm	4,120 mm	4,180 mm	4,255 mm

Chassis
Specification	TG20	TG25	TG30	TG35
Front Tires — 2	7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28×9-15-14PR
Rear Tires — 2	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
Front Track Width	970 mm	970 mm	1,000 mm	1,000 mm
Rear Track Width	980 mm	980 mm	980 mm	980 mm
Wheelbase	1,650 mm	1,650 mm	1,700 mm	1,700 mm

Gasoline/LPG Dual-Fuel — Performance and Weight
Specification	TG20	TG25	TG30	TG35
Original Catalogue Model	FGL20T	FGL25T	FGL30T	FGL35T
Power Type	Gasoline/LPG	Gasoline/LPG	Gasoline/LPG	Gasoline/LPG
Travel Speed — Unloaded	20 km/h	20 km/h	20 km/h	20 km/h
Lift Speed — Loaded	523 mm/s	523 mm/s	439 mm/s	439 mm/s
Lowering Speed — Loaded/Unloaded	≤600 / ≥300 mm/s	≤600 / ≥300 mm/s	≤600 / ≥300 mm/s	≤600 / ≥300 mm/s
Maximum Drawbar Pull — Loaded/Unloaded	19.6 / 19.1 kN	19.6 / 19.1 kN	19.6 / 19.1 kN	19.7 / 19 kN
Maximum Gradeability — Loaded	29%	29%	26%	23%
Service Weight	3,777 kg	4,017 kg	4,367 kg	4,727 kg
Front Axle Weight — Loaded	5,026 kg	5,794 kg	6,630 kg	7,330 kg
Rear Axle Weight — Loaded	1,751 kg	1,223 kg	737 kg	897 kg
Front Axle Weight — Unloaded	1,889 kg	1,868 kg	1,965 kg	1,867 kg
Rear Axle Weight — Unloaded	1,889 kg	2,149 kg	2,402 kg	2,860 kg

LPG-Only — Performance and Weight
Specification	TG20	TG25	TG30	TG35
Original Catalogue Model	FL20T	FL25T	FL30T	FL35T
Power Type	LPG	LPG	LPG	LPG
Travel Speed — Unloaded	20 / 19 km/h	20 / 19 km/h	20 / 19 km/h	20 km/h
Lift Speed — Loaded	523 / 551 mm/s	523 / 551 mm/s	439 / 479 mm/s	439 / 479 mm/s
Lowering Speed — Loaded/Unloaded	≤600 / ≥300 mm/s	≤600 / ≥300 mm/s	≤600 / ≥300 mm/s	≤600 / ≥300 mm/s
Maximum Drawbar Pull — Loaded/Unloaded	19.6 / 19.1 kN	19.6 / 19.1 kN	19.6 / 19.1 kN	19.7 / 19 kN
Maximum Gradeability — Loaded	29%	29%	26 / 25%	23 / 22%
Service Weight	3,777 / 3,790 kg	4,017 / 4,030 kg	4,367 / 4,380 kg	4,727 / 4,740 kg
Front Axle Weight — Loaded	5,026 / 5,037 kg	5,794 / 5,805 kg	6,630 / 6,642 kg	7,330 / 7,342 kg
Rear Axle Weight — Loaded	1,751 / 1,753 kg	1,223 / 1,225 kg	737 / 738 kg	897 / 898 kg
Front Axle Weight — Unloaded	1,889 / 1,895 kg	1,868 / 1,874 kg	1,965 / 1,971 kg	1,867 / 1,872 kg
Rear Axle Weight — Unloaded	1,889 / 1,895 kg	2,149 / 2,156 kg	2,402 / 2,409 kg	2,860 / 2,868 kg

Engine Specifications
Specification	Gasoline/LPG — GCT	LPG — GCT	LPG — Hyundai
Engine Model	GK25	GK25	HMC 2.4L
Engine Manufacturer	GCT	GCT	Hyundai
Emissions Designation, as Listed	EU III	EU III	EPA IV / EU V
Rated Output	35.6 kW at 2,100 rpm	35.6 kW at 2,100 rpm	45.4 kW at 2,600 rpm
Rated Torque	176.5 N·m at 1,600 rpm	176.5 N·m at 1,600 rpm	178.9 N·m at 2,000 rpm
Number of Cylinders	4	4	4
Bore × Stroke	92 × 93 mm	92 × 93 mm	88 × 97 mm
Displacement	2,472 cc	2,472 cc	2,359 cc

Power and Transmission — Shared Specifications
Specification	TG20	TG25	TG30	TG35
Battery	12 V / 60 Ah	12 V / 60 Ah	12 V / 60 Ah	12 V / 60 Ah
Fuel Tank Capacity — Catalogue Listing*	60 L	60 L	60 L	60 L
Transmission Type	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Transmission Speeds — Forward / Reverse	1 / 1	1 / 1	1 / 1	1 / 1
Attachment Operating Pressure	18.5 MPa	18.5 MPa	18.5 MPa	20.5 MPa

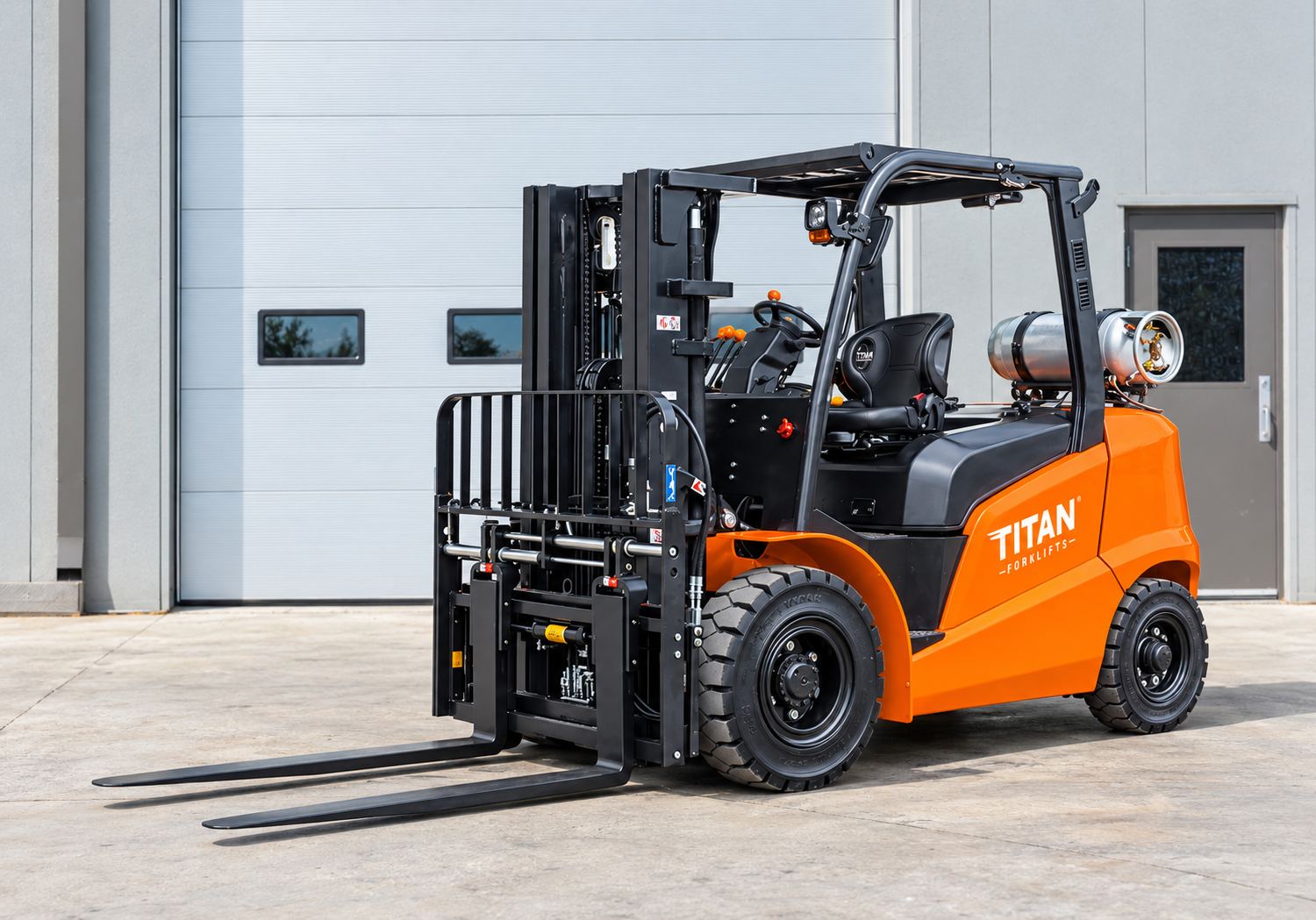

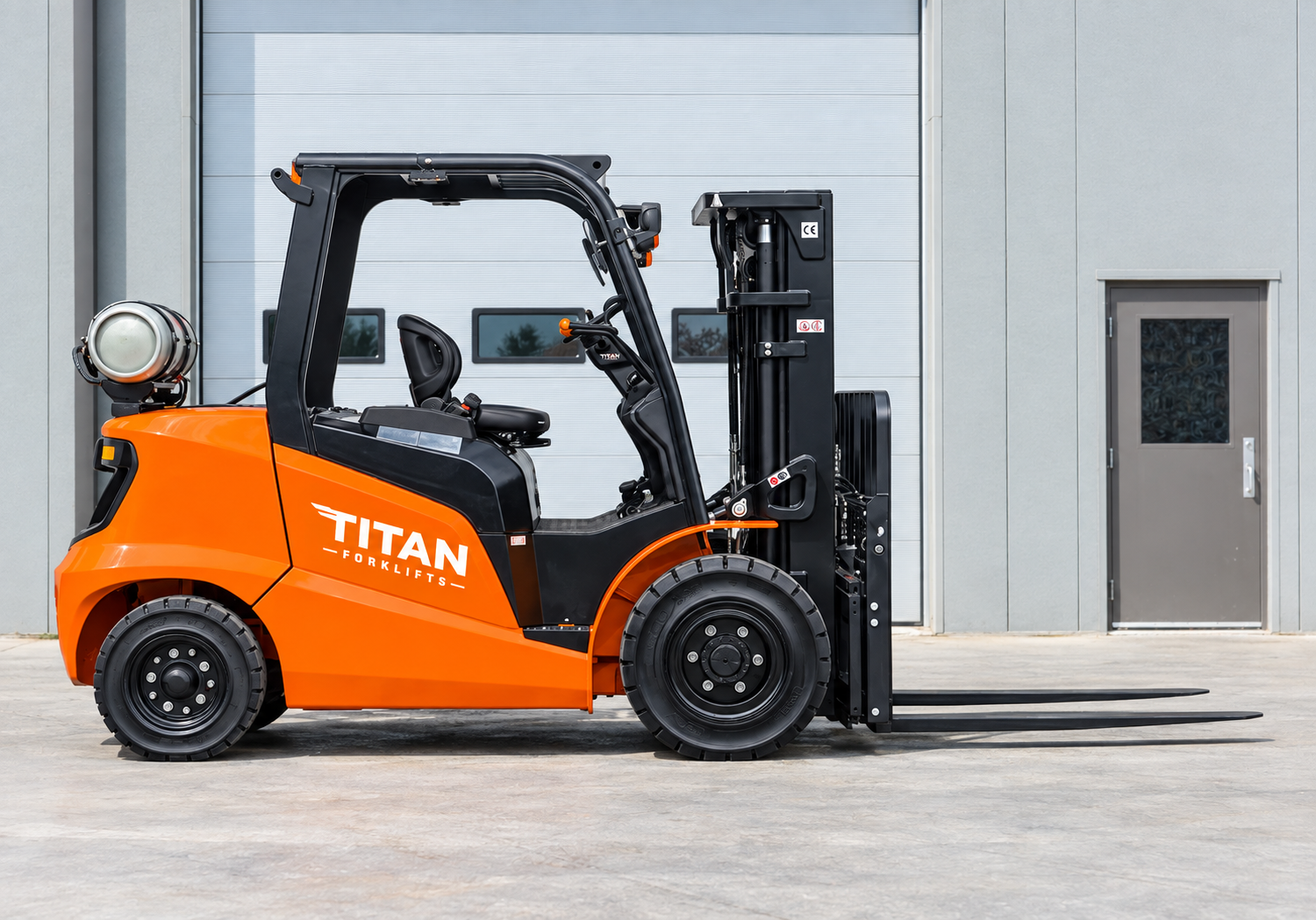

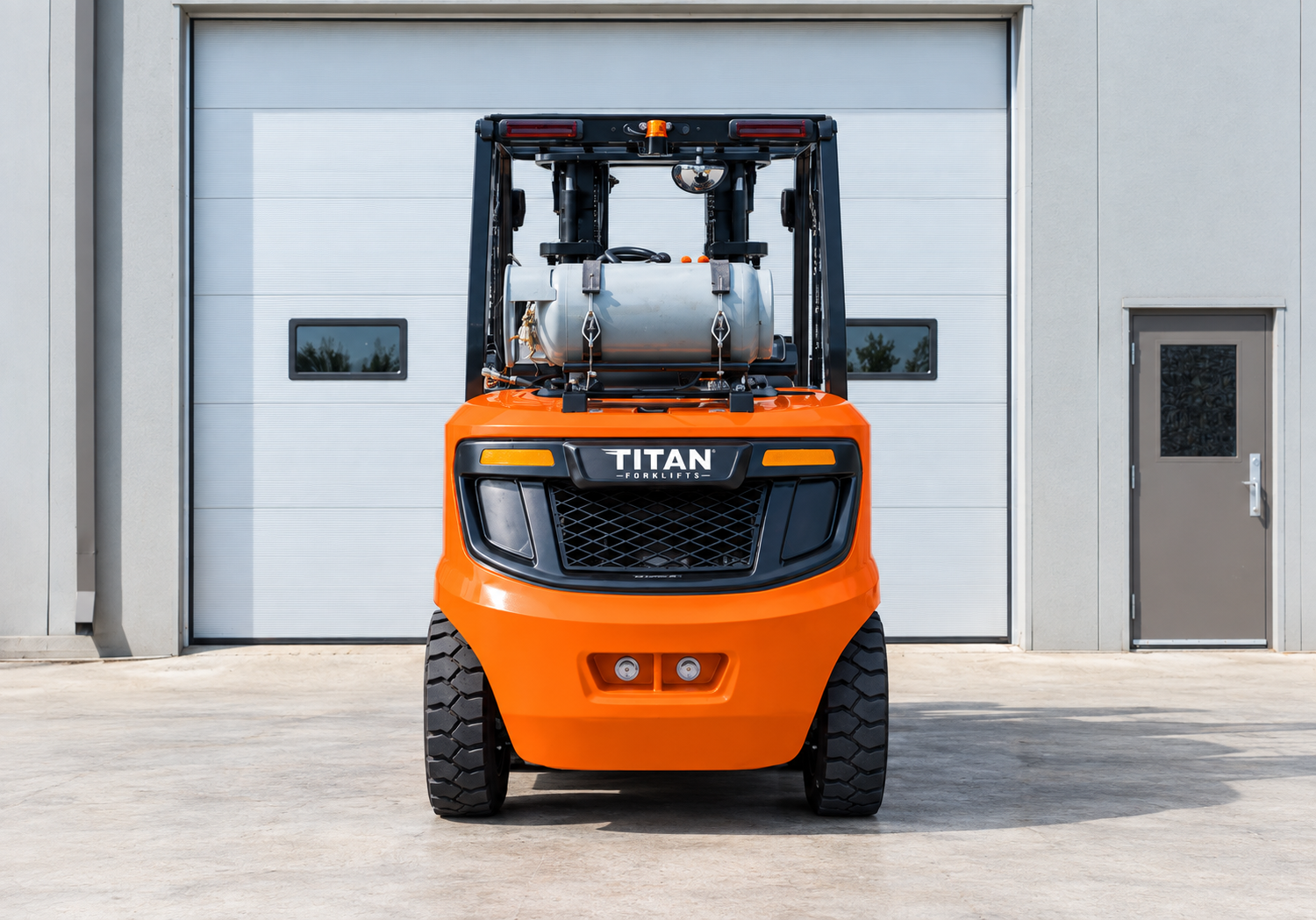

Titan TG-Series
4.5–5.5 Ton LPG/Gas Forklifts

Built for heavier loads and demanding daily use, the Titan TG 4.5–5.5 Ton Series combines Kubota dual-fuel power with a robust chassis and efficient hydraulics. Available in capacities from 4,500 to 5,500 kg, these forklifts deliver the strength needed for manufacturing, building materials and busy loading areas. An expanded operator workspace, vibration-reducing mounts and accessible service points help keep operators comfortable and maintenance straightforward.

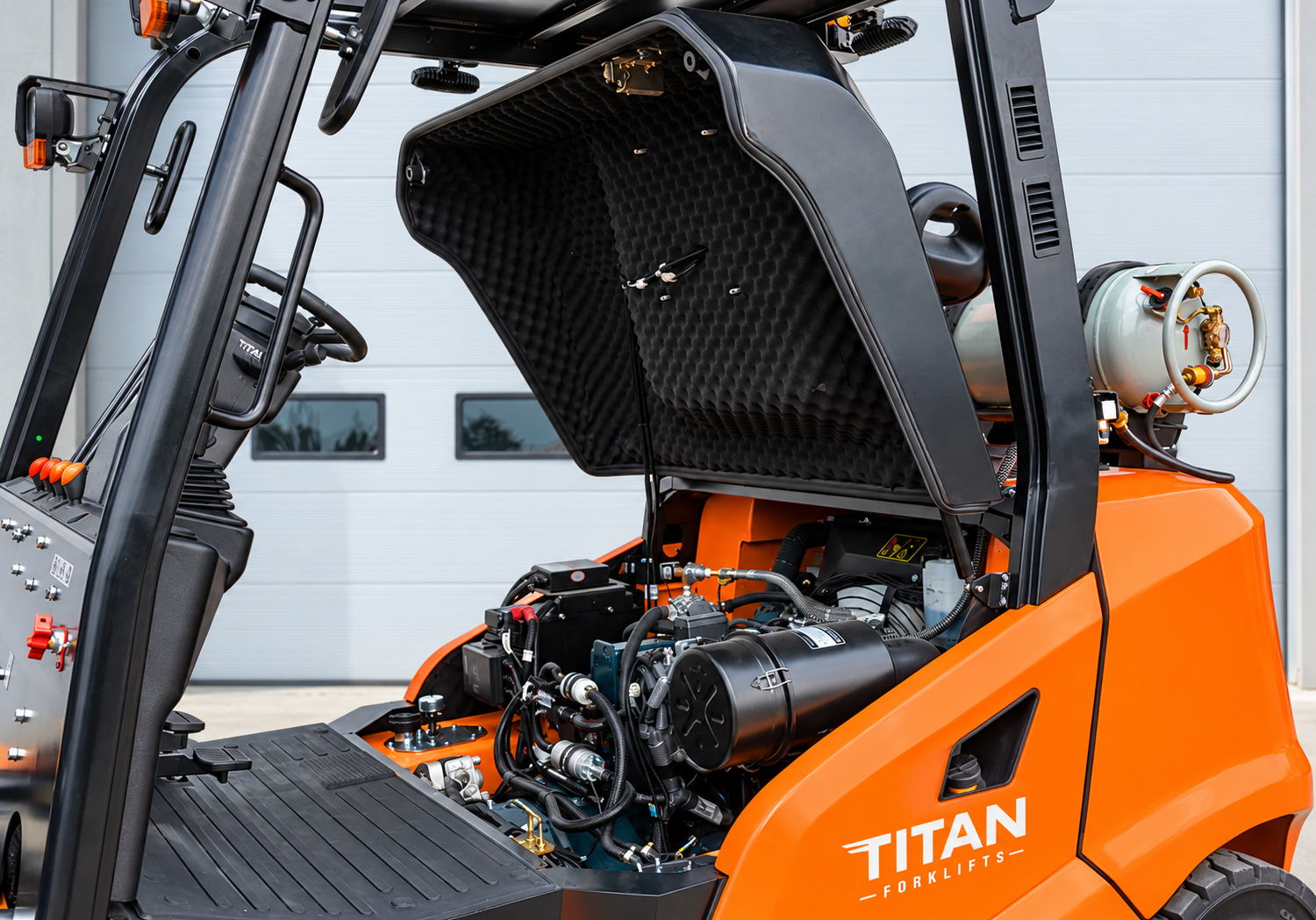

Kubota Dual-Fuel Power: A 3.8L, four-cylinder engine offers gasoline and LPG capability for flexible operation.
Efficient Hydraulic Performance: A dual-pump flow-merging system and load-sensing technology improve working efficiency and reduce energy loss.
Heavy-Duty Steering Axle: An integrated cast steering axle provides durable support and helps maintain manoeuvrability when handling heavier loads.
Comfortable Operator Workspace: An adjustable steering column, expanded operating space and four shock-absorbing mounts help reduce fatigue and vibration.
Easy Maintenance Access: An 80° hood opening, detachable side panels and accessible floor plates simplify routine servicing.

General

Item	TG45	TG50	TG55
Power Type	Gas / LPG	Gas / LPG	Gas / LPG
Rated Capacity	4,500 kg / 9,921 lbs	5,000 kg / 11,023 lbs	5,500 kg / 12,125 lbs
Load Centre	500 mm / 19.7 in	500 mm / 19.7 in	500 mm / 19.7 in

Characteristics & Dimensions

Item	TG45	TG50	TG55
Lift Height	3,000 mm / 118.1 in	3,000 mm / 118.1 in	3,000 mm / 118.1 in
Free Lift Height	150 mm / 5.9 in	150 mm / 5.9 in	150 mm / 5.9 in
Fork Size (L×W×T)	1,070×150×50 mm / 42.1×5.9×2.0 in	1,070×150×50 mm / 42.1×5.9×2.0 in	1,070×150×55 mm / 42.1×5.9×2.2 in
Mast Tilt Angle (F/R)	6° / 12°	6° / 12°	6° / 12°
Front Overhang	571 mm / 22.5 in	571 mm / 22.5 in	576 mm / 22.7 in
Ground Clearance (Bottom of Mast)	140 mm / 5.5 in	140 mm / 5.5 in	140 mm / 5.5 in
Length to Face of Fork	3,265 mm / 128.5 in	3,265 mm / 128.5 in	3,315 mm / 130.5 in
Overall Width	1,520 mm / 59.8 in	1,520 mm / 59.8 in	1,520 mm / 59.8 in
Mast Lowered Height	2,250 mm / 88.6 in	2,250 mm / 88.6 in	2,250 mm / 88.6 in
Mast Extended Height (with Backrest)	4,250 mm / 167.3 in	4,250 mm / 167.3 in	4,405 mm / 173.4 in
Overhead Guard Height	2,370 mm / 93.3 in	2,370 mm / 93.3 in	2,370 mm / 93.3 in
Turning Radius (Outside)	2,930 mm / 115.4 in	2,930 mm / 115.4 in	2,980 mm / 117.3 in
Minimum Aisle Width for Pallets	4,690 mm / 184.6 in	4,690 mm / 184.6 in	4,750 mm / 187.0 in
Overhead Guard Configuration	2,260 mm / 89.0 in	2,260 mm / 89.0 in	2,260 mm / 89.0 in

Performance

Item	TG45	TG50	TG55
Travel Speed (Full Load / No Load)	25 / 26 km/h — 15.5 / 16.2 mph	25 / 26 km/h — 15.5 / 16.2 mph	25 / 26 km/h — 15.5 / 16.2 mph
Lifting Speed (Full Load)	580 mm/s / 22.8 in/s	580 mm/s / 22.8 in/s	530 mm/s / 20.9 in/s
Lifting Speed (No Load)	620 mm/s / 24.4 in/s	620 mm/s / 24.4 in/s	580 mm/s / 22.8 in/s
Lowering Speed (Full Load / No Load)	300–600 mm/s / 11.8–23.6 in/s	300–600 mm/s / 11.8–23.6 in/s	300–600 mm/s / 11.8–23.6 in/s
Max Gradeability (Full Load / No Load)	33% / 28%	33% / 28%	33% / 28%
Service Weight	6,510 kg / 14,352 lbs	6,920 kg / 15,256 lbs	7,280 kg / 16,050 lbs

Chassis

Item	TG45	TG50	TG55
Front Tire	300-15-18PR	300-15-18PR	300-15-18PR
Rear Tire	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
Wheelbase	2,100 mm / 82.7 in	2,100 mm / 82.7 in	2,100 mm / 82.7 in

Power & Transmission

Item	TG45	TG50	TG55
Battery	12 V / 90 Ah	12 V / 90 Ah	12 V / 90 Ah
Engine Manufacturer	Kubota	Kubota	Kubota
Engine Model	WG3800-GL-C	WG3800-GL-C	WG3800-GL-C
Displacement	3.768 L	3.768 L	3.768 L
No. of Cylinders	4	4	4
Rated Output (Gasoline / LPG)	57.6 / 60.7 kW at 2,400 rpm	57.6 / 60.7 kW at 2,400 rpm	57.6 / 60.7 kW at 2,400 rpm
Rated Torque (Gasoline / LPG)	248 / 273 N·m at 1,200 rpm	248 / 273 N·m at 1,200 rpm	248 / 273 N·m at 1,200 rpm
Fuel Tank Capacity (Gasoline)	110 L / 29.1 US gal	110 L / 29.1 US gal	110 L / 29.1 US gal
Transmission Type	Hydraulic	Hydraulic	Hydraulic
Speed FWD/RVS	2 / 1	2 / 1	2 / 1
Operating Pressure for Attachments	23.5 MPa	23.5 MPa	23.5 MPa

Become a Dealer

Request a Quote

Have a question? Contact us today!
844-93TITAN (844-938-4826) | Email

Standard Features

All Titan TG-Series forklifts come equipped with a comprehensive set of standard features to enhance safety, performance, and ease of maintenance:

Here at Titan, we stand behind our equipment. That’s why all our Titan forklifts are backed by our 6-Year / 6,000-Hour Premium Warranty. Our coverage extends beyond the major components to provide the closest thing you can get to bumper-to-bumper coverage. We’re committed to supporting your investment for the long haul.
